Buyer's Handbook — Chapter 5

Magnetic Track Lighting Sample Approval: Why an Approved Sample Doesn't Guarantee Production Quality

Everything below is the detail behind those three questions. The three actions are the main line. The advanced module at the end is for the parameters your project actually depends on — skip it if your order is simple.

The Sample on Your Desk

Two suppliers quoted. Both samples arrived. Both light up. Both look the same under your ceiling.

You have to sign off on one.

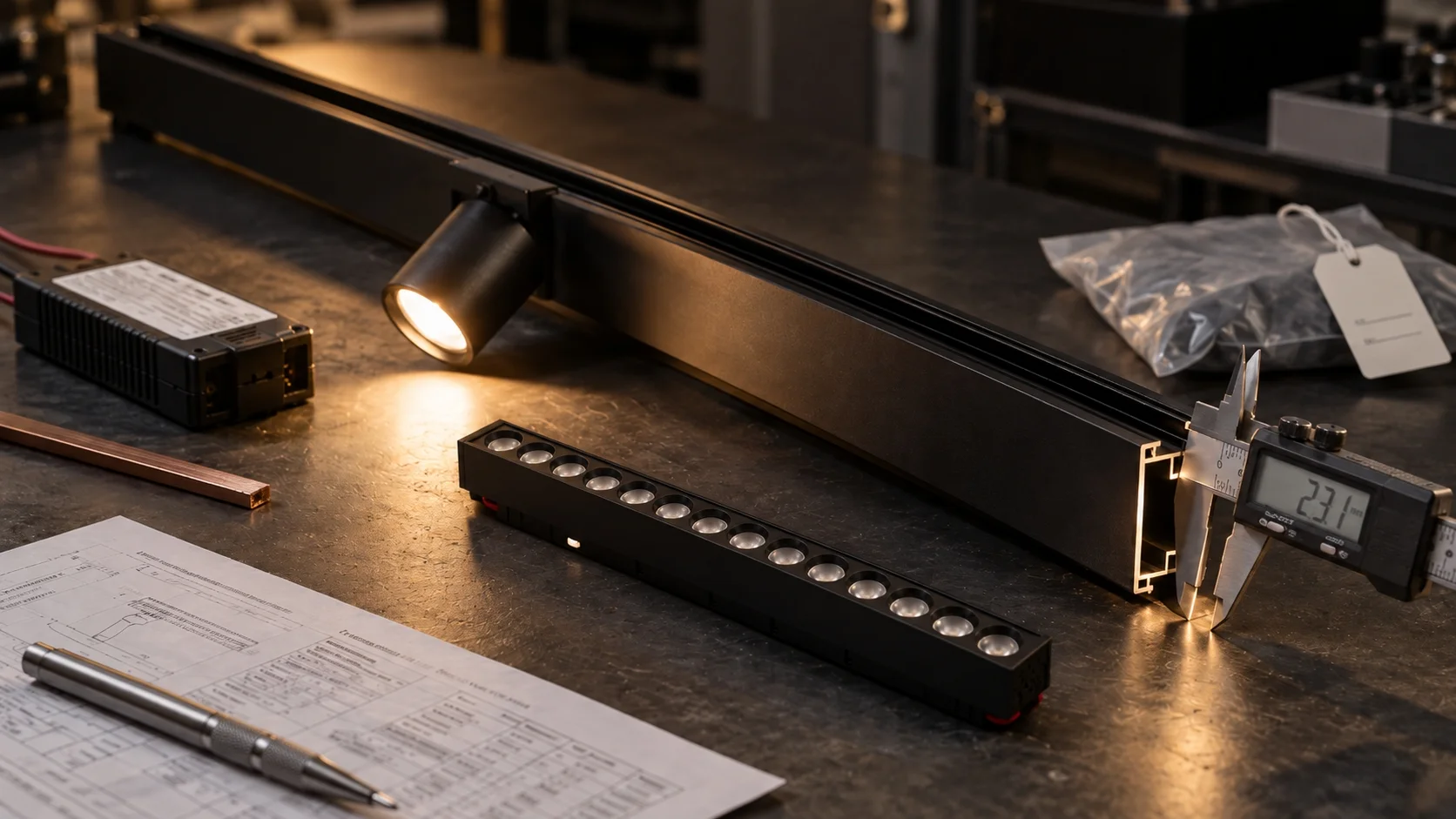

One example runs through this chapter. The caliper reads 1.18mm on the sample's profile wall. The quotation says 1.2mm. Is that a problem? By the end of this page you will know exactly what to write into the order so the answer is never left to opinion.

Why a Good Sample Proves Less Than It Looks

Three assumptions can lead to sample-approval failures when the production reference and written controls are incomplete.

What buyers assume	What the sample actually proves
The sample passed, so production will pass	The supplier can build one unit under the conditions used for that sample
The sample looks good, so the process is stable	One unit may have received individual finishing or selection
The batch went wrong, so the supplier cut corners	No standard was ever agreed in writing

The third row is the counter-intuitive one.

A batch-consistency failure is not always a supplier substituting materials on purpose. Many batch-consistency disputes arise because the production standard was not agreed in writing before release. A supplier builds a good sample, ships what the line produces, and both sides find out at the same time.

A sample can be used as a reference only when its parameters and production controls are documented.

A sample replicates. A standard controls.

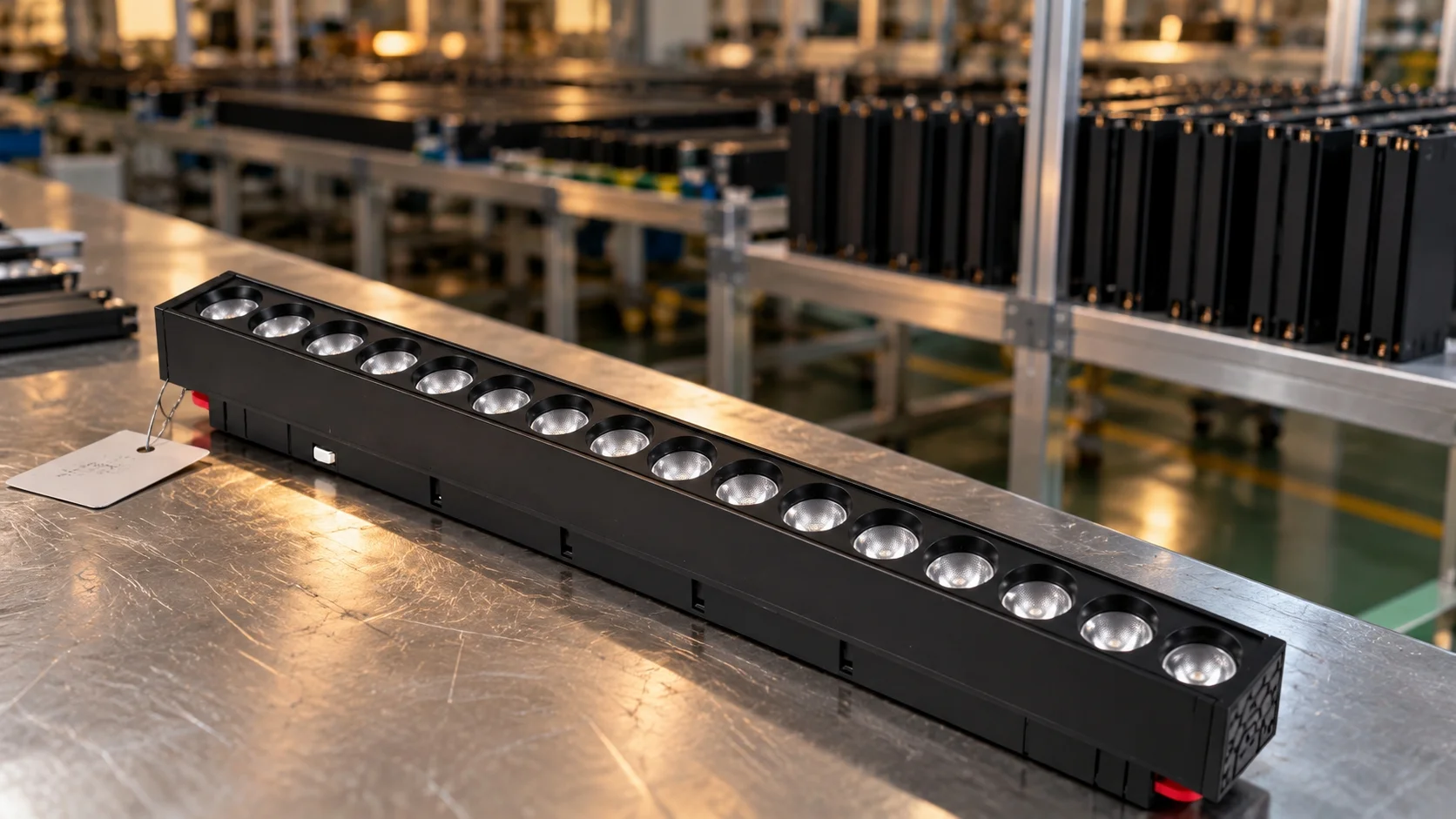

Action 1 — Confirm Where the Sample Came From

Sample source	What it tells you	Risk
Pulled from a running production batch	Represents the process that will make your order	✅ Low
Built separately as an engineering sample	Shows design intent, not process capability	⚠️ Medium
Kept as a display or exhibition sample	May be years old; finish and components can drift	🚫 High

Send this question, word for word:

Was this sample pulled from a production batch? If yes, state the batch and line. If no, confirm in writing when you will provide the line-produced first article or first-batch pull, before release.

PASS	FAIL
The supplier names the batch and line and confirms the same process for your order — or states in writing that this is an engineering sample for a new model and commits to a line-produced first article before release.	"This is our standard sample" — no origin, no batch, no commitment.

What a good answer sounds like:

✅ "This sample was pulled from batch B-2604 on line 2 (extrusion → anodising → assembly). Your order will run on the same line with the same fixture set. Sample build date: 06 Sep."

What a bad answer sounds like:

❌ "This is our best-quality standard sample. Please check it; our quality is good and many clients are satisfied."

Keep for your file: the supplier's signed source statement; for an engineering sample, the first-article record.

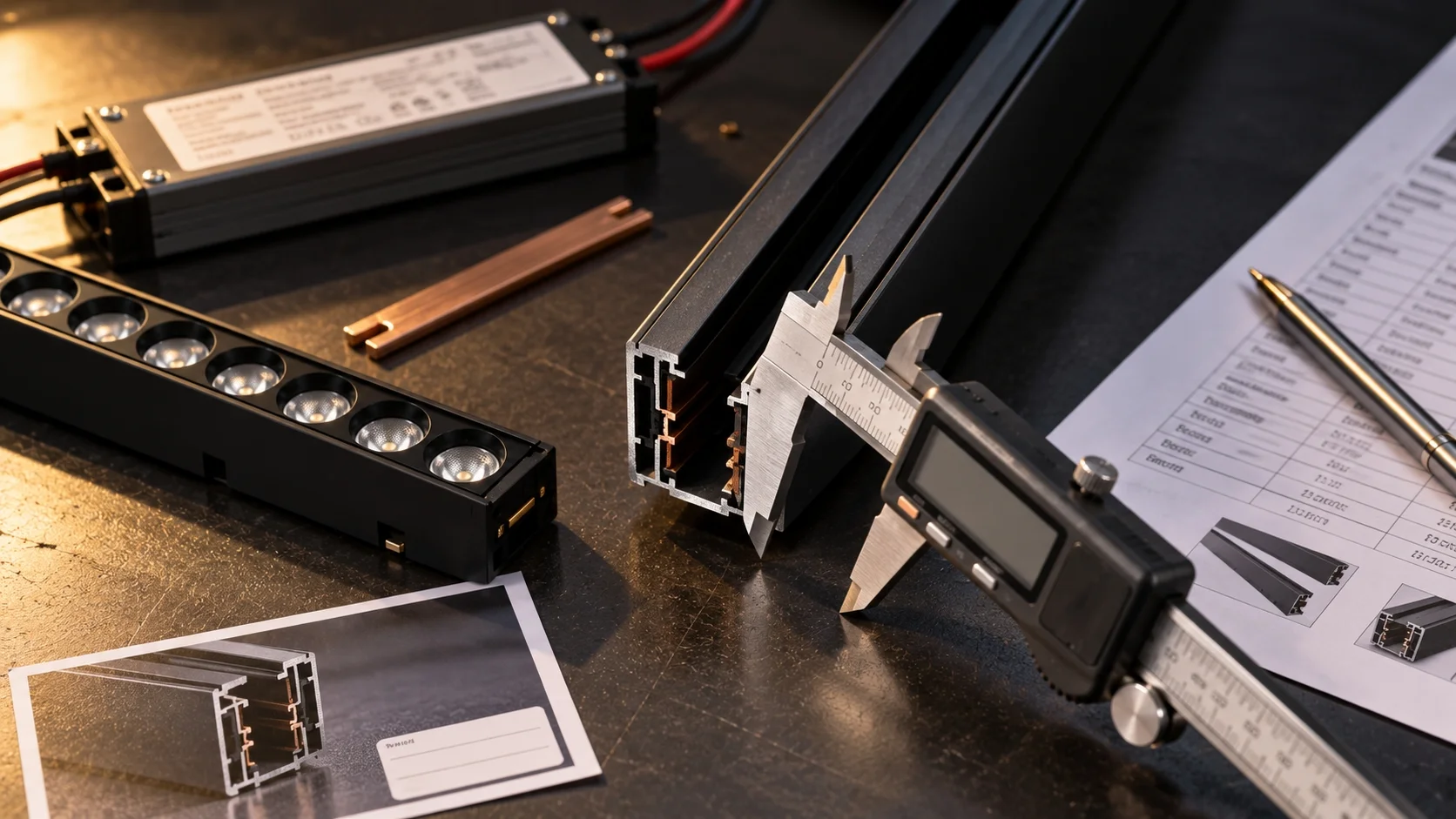

Action 2 — Confirm the Physical Unit Matches the Quotation

Between the first reply and the sample, a supplier makes a set of claims. The physical unit is where those claims can be checked.

Claim made earlier	What to check on the physical unit
Conductor material	Cross-section and colour of the conductor strip
Contact plating	Colour and wear at the contact point
Fixing method	Screws present — or clips only
Driver	Label on the driver: model number and wattage
LED, CCT, CRI	Marking on the module, colour temperature, SDCM
Aluminium wall thickness	Measure at three agreed points with the stated method
Surface finish	Anodised or powder-coated; colour match between end cap and rail
Track-to-track joint	Gap and alignment where two rails meet

Back to the 1.18mm reading

The quotation says 1.2mm. The caliper says 1.18mm. Whether that 0.02mm difference is meaningful depends on the calibrated tool, contact point, surface condition and agreed measurement method. The measurement alone is not the decision.

The problem is that the quotation said "1.2mm" with no tolerance. A number with no tolerance cannot be checked and cannot be enforced. Two questions go back:

1. What is the permitted tolerance on the profile wall, measured at which points, by which method?
2. Will you confirm that figure in the parameter sheet that goes with this order?

Once that is answered, 1.18mm is either inside the agreed tolerance (release) or outside it (hold). Either way it stops being an opinion.

PASS	FAIL
Every parameter your order depends on has a value, unit, tolerance and verification method in writing, and the unit matches it — or the difference is approved in writing before release.	A required parameter has no value, unit, tolerance or method; the unit conflicts with the written figure; or a difference is not approved in writing.

What a good answer sounds like:

✅ "Conductor is pure copper, 2.0 × 3.0mm section. Contact plating is gold over nickel. Driver label reads CV-100-48, 100W constant voltage. Wall thickness measures 1.18–1.22mm at three points; the permitted tolerance and measurement method will be stated in the parameter sheet. Batch sheet attached."

What a bad answer sounds like:

❌ "This is our standard quality. The copper and driver are good quality, and we inspect the thickness before shipping."

Send back: photographs of the sample at these eight points, each one placed next to the written claim it checks.

Keep for your file: the signed parameter sheet, the measurement record, and a dated photo of each checked point.

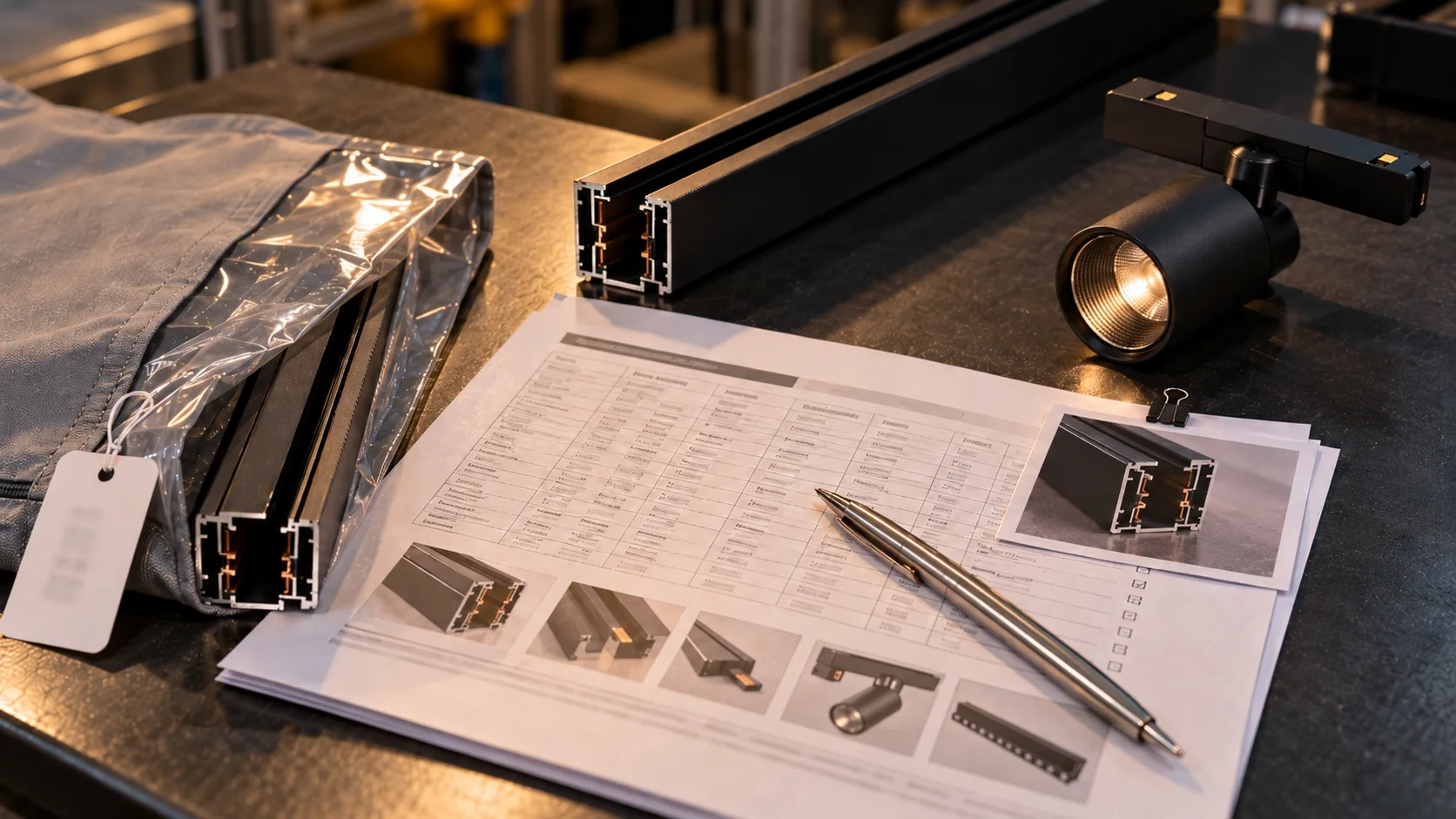

Action 3 — Turn the Sample into an Order Standard

Four things go into the order:

What	Why
A retained unit held on both sides	A physical reference if a dispute arises
Dated photographs of that unit	A sample cannot be couriered back for every batch
A locked parameter list with a no-substitution clause	Turns "it looks the same" into a list that can be checked
A written deviation-notification duty	Gives you time to react before shipment

Copy this request:

Before we confirm the production order, please confirm in writing:

1. You will retain one unit from this sample, labelled with our company name and the sample date, for the period we agree in the order.
2. You will send us dated photographs of that retained unit.
3. You will attach a locked parameter list to this order covering at least the following: aluminium alloy and wall thickness, conductor material, driver make and model, LED platform with CCT and SDCM, surface finish, and critical fit dimensions — plus any project-specific parameters this order requires. No substitution of these items without our written approval.
4. You will notify us in writing if a batch deviates from the retained sample, before shipment.

The locked parameter list — a project-specific starting set:

1. Aluminium profile alloy and wall thickness
2. Conductor material and cross-section
3. Driver make and model
4. LED platform, CCT and SDCM bin
5. Surface finish process
6. Critical fit dimensions (track joint, end cap, module seating)

Add any project-specific requirements, including track-system voltage/pole configuration and module compatibility, dimming/control protocol, emergency function, and IP or installation requirements where applicable.

You are not asking for a full BOM. The categories above are a practical starting set that makes a change to a listed parameter visible for written approval; add the project-specific parameters needed for your order.

Retention period matters as much as the sample. A retained unit gives both sides a physical reference for the period it is retained. Agree that period in the order — ideally covering the expected repeat-order period — so a later unit can be compared against the agreed reference if a locked parameter is questioned.

PASS	FAIL
The order carries, in writing, all four commitments above — a retained unit held on both sides, dated photographs of that unit, a project-specific locked parameter list carrying the no-substitution clause, and the written deviation-notification duty.	Any one of those four is absent from the order, or the supplier offers a verbal assurance in place of it.

What a good answer sounds like:

✅ "Confirmed. We will retain one unit from this sample, labelled with your company name and the date, for the agreed period. We will send dated photographs of that unit and attach the locked parameter list to your order. No substitution without your written approval, and we will notify you in writing before shipping if a batch deviates."

What a bad answer sounds like:

❌ "Yes, we can keep one sample for you. No problem. For the BOM — this is our internal document, we cannot send. But you can trust us, we will not change anything."

Keep for your file: the signed retained-sample confirmation, the dated photographs of the retained unit, and the order version carrying the project-specific locked parameter list and the no-substitution clause.

Hold, or Release

A failure is not counted against passes elsewhere. It is handled by its class.

Class	Applies to	What a failure means
🛑 Hard Stop	Action 1 sample source · Action 3 sample → standard	Hold. Do not sign the production order. Request the missing standard and recheck it. Refused → Switch.
🏆 Quality Proof	Action 2 unit vs quotation · the advanced module	Hold. Request the specified, project-applicable evidence. Still missing, unsuitable or conflicting after the agreed correction date → Switch.
💼 Commercial Filter	The order terms in Action 3	Hold release or shipment. Write the required terms into the order; a general QC assurance is not a substitute.

Situation	Your action
Any Hard Stop is not satisfied	Hold. Request the missing standard and recheck it. If refused, Switch.
An applicable quality record is missing, or conflicts with the unit or the locked parameter list	Hold. Request the specified evidence. If it stays missing or conflicting after correction, Switch.
Source and standard pass, but the order terms are incomplete	Hold release. Add the written terms; do not substitute a verbal assurance.
All applicable evidence is retained and all required terms are locked in the order	Sign the retained sample, send dated photographs of that unit, attach the locked parameter list with the no-substitution clause, confirm the deviation terms, then Release.

Back to the 1.18mm Reading

The measurement was never the problem. What decides it is whether three things exist in writing.

Situation	With the documents	Without them
1.18mm against a stated 1.2mm plus an agreed tolerance	Inside tolerance → release. Outside → hold, rework, or written acceptance.	"It's basically the same" — a difference you may not be able to resolve later.
A later batch that measures 1.15mm	Compared against the retained unit and the agreed tolerance.	Found by your customer after installation.

The sample is evidence. The documents written at sample approval are what make it enforceable.

Advanced Module — When Your Project Needs More

Skip this if your order is simple. Read the rows your project actually depends on.

What a sample cannot prove

What the sample cannot show	Why	What to request instead
Batch-to-batch consistency	One unit says nothing about the spread across the order	The incoming, in-process and final inspection points; recorded parameter at each point; sample size; and deviation-authorisation record
Colour tolerance across units	A single module can be hand-selected from the best bin	LED manufacturer/platform, nominal CCT, permitted CCT range, SDCM bin, and the bin code released for this order
Ageing and lumen maintenance	Lumen depreciation is not visible on a bench	A test record for the same LED platform: duration, drive current, ambient or case temperature, lumen-maintenance result and report date
Thermal behaviour	Depends on the fixture, the driver and the installation	Housing case temperature at a named point after a stated stabilisation time, with ambient, mounting condition, driver model and input condition; plus the driver derating curve
Finish durability	Corrosion and UV exposure take months to appear	For coastal or corrosive sites: coating system, test method, agreed exposure duration and pass criterion; otherwise mark this item project input required

A bench check tells you whether the unit lights up. It does not tell you where the LEDs will be at hour 3,000. Thermal conditions can materially affect lumen maintenance and driver life, while the sample in front of you shows its light output, not its operating temperature.

PASS	FAIL
For every limitation that applies to your project, the supplier provides the named record. Limitations that do not apply are marked with the project condition that makes them non-applicable.	A required record is missing, is for a different LED platform or product configuration, conflicts with the locked parameter list, or the supplier cannot say whether the limitation applies.

Ask this: "What can this sample not prove for this project, and which record covers each gap?"

The inspection plan (AQL)

ISO 2859-1 provides AQL-indexed sampling schemes; it does not select the AQL, defect class or acceptance number for your order. State in the order the standard and edition, lot definition, inspection level, sampling scheme, agreed AQL or other rule, named critical/major/minor items, and the acceptance/rejection numbers. Choose those values for the project risk and agreed controls. For safety- or compatibility-critical items, state whether the order requires 100% verification or a named zero-acceptance plan instead of relying on a general AQL statement.

PASS	FAIL
The order states the inspection standard and edition, lot definition, inspection level, sampling scheme, the agreed AQL or other rule, named critical/major/minor items, the acceptance and rejection numbers, and the pre-shipment written-notice trigger.	Any one of those fields is missing from the order, or the supplier offers only a general assurance such as "we will do our best."

✅ "For this order, the agreed inspection plan is [standard and edition], [inspection level], [lot definition], AQL [value] for named major/minor items, with [100% verification or named zero-acceptance plan] for the listed critical items. If a batch deviates, we notify you in writing with photographs before shipment."

❌ "We have 100% QC. All goods checked before shipping. If any problem, we will solve for you."

Also agree in the order

Term	What to agree in writing	Why it matters
Critical vs cosmetic	Which items may never deviate	Stops a cosmetic tolerance being used to justify a functional change
Deviation handling	Rework, replacement, or your written acceptance before shipment	Determines your remedy if it goes wrong
Notification duty	Written notice to you when a batch deviates	Gives you time to decide on rework, replacement or acceptance before shipment

Signals that mean hold

IF	THEN
The supplier cannot identify the sample source and will not commit to a production reference before release	Treat the sample as a design mock-up, not a production reference
A written claim does not survive the physical unit	Treat that claim as unverified until the parameter sheet is reissued and the unit is rechecked
The supplier claims the sample is exactly what you will receive, but cannot describe a batch-control measure	Treat batch control as unverified; do not release until the record is provided
The supplier will not retain a sample on both sides, provide dated photographs of that unit, or attach a locked list carrying the no-substitution clause	Do not release production
The supplier will not commit in writing to notifying you when a batch deviates	Do not release or ship until the notification duty is written into the order

Evidence to retain

After	Keep in your file
Action 1 — sample source	The supplier's signed source statement; for an engineering sample, the first-article or first-batch record
Action 2 — unit vs quotation	The signed parameter sheet, the measurement record, and a dated photograph of each checked point
Action 3 — order standard	The signed retained-sample confirmation, the dated photographs of the retained unit, and the order version carrying the project-specific locked parameter list and the no-substitution clause
Advanced module	The project-condition note and every applicable batch-control, colour, ageing, thermal or finish record
Inspection plan	The signed order version containing the inspection plan, acceptance criteria and notification duty

Your Next Step

One action: attach four things to your next production order — a retained sample held on both sides, dated photographs of that unit, a project-specific locked parameter list carrying the no-substitution clause, and a written deviation-notification clause. Everything else on this page is a way of checking whether those four exist.

The inspection references in this chapter are planning prompts, not a specification for any individual order. Your supplier's actual parameters, tolerances, test conditions and acceptance criteria must be stated in writing on the order.
